### Selective Copper Clearing - Example

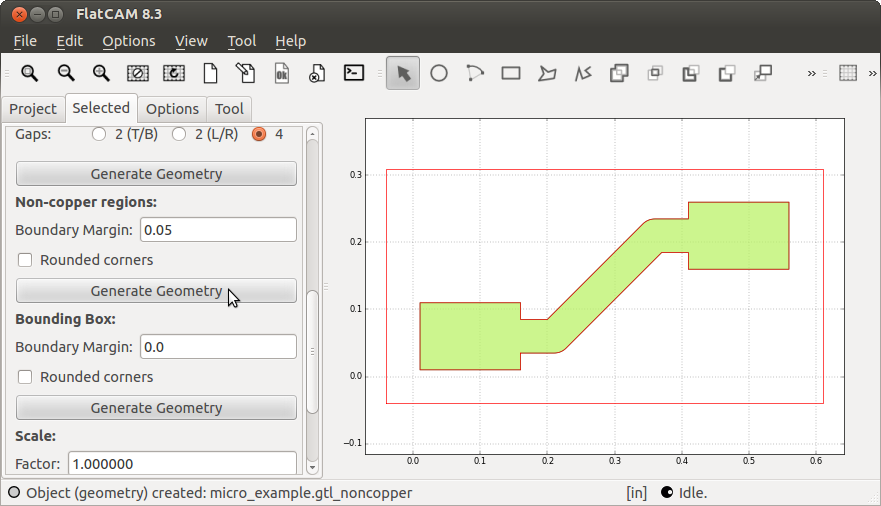

For copper clearing, you would start by obtaining the "non-copper" regions from the Gerber.

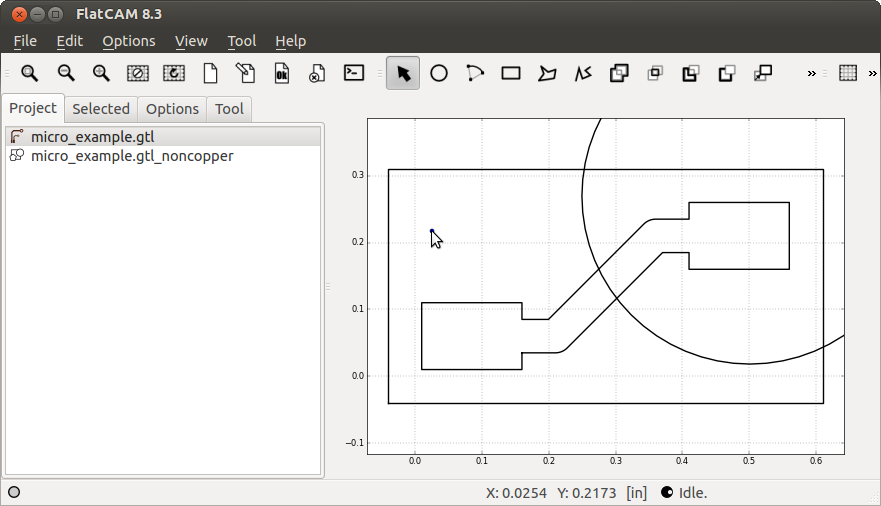

In the figure below, we have hidden the Gerber and started the Geometry Editor. We have also drawn a circle representing the area where we want the copper clearing.

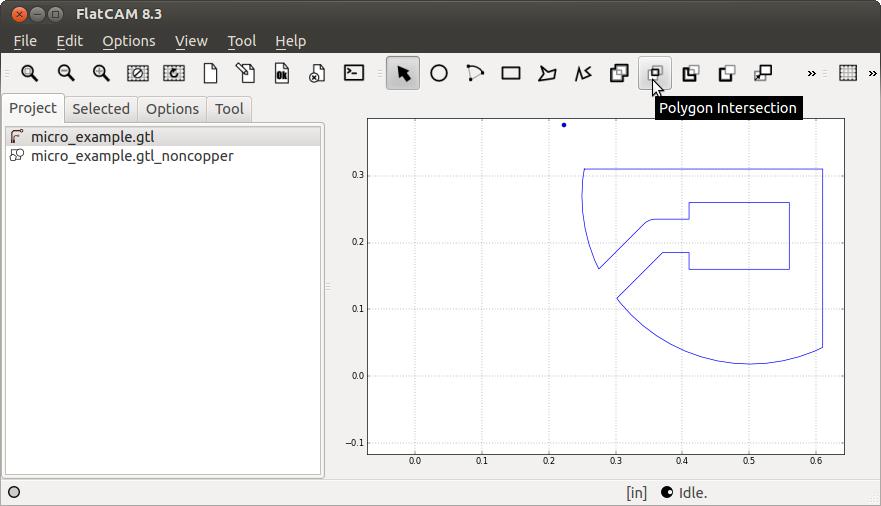

By running the **Polygon Intersection** operation on the original non-copper
polygon and the desired clearing area (the circle), we get the target polygon:

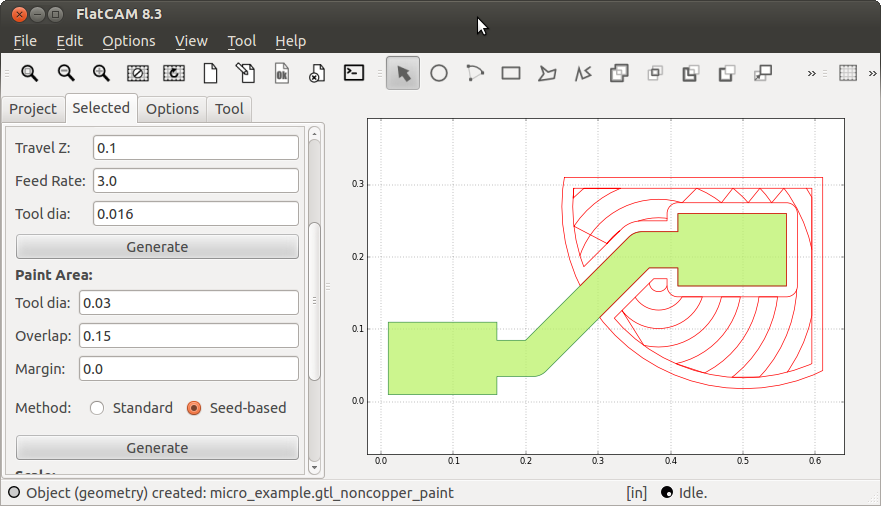

Now we can run the **Paint Area** operation as usual on the resulting
polygon:

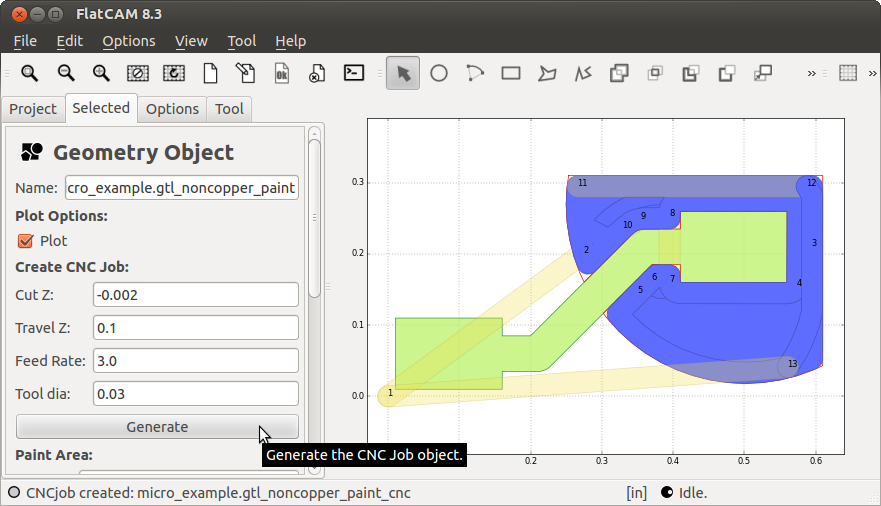

And generate a CNC Job from it to see the final result:
